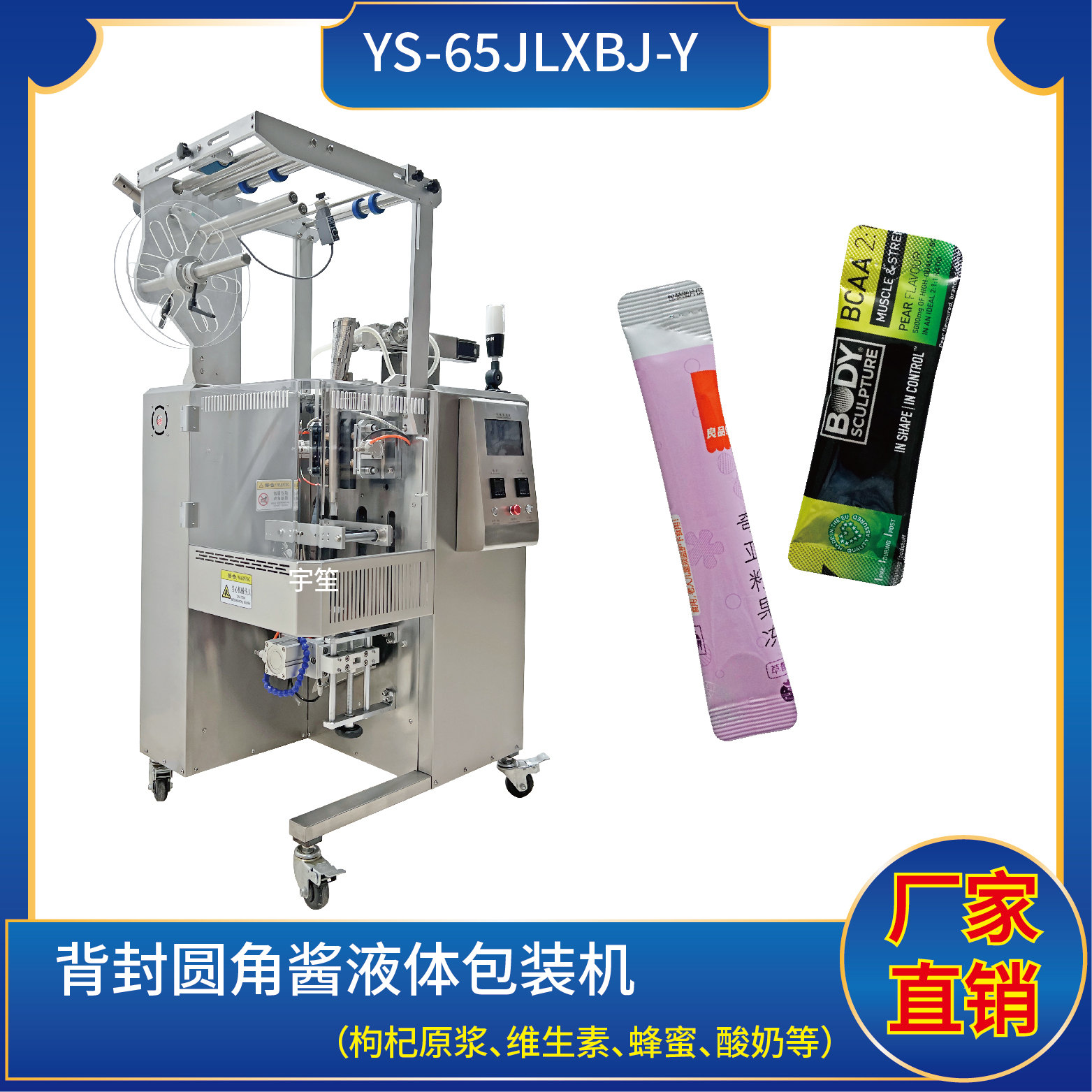

YS-65JLXBJ-Y圓角背封醬料醬汁灌裝機
YS-65JLXBJ-Y 背封圓角醬體包裝機
特 點 Characteristic
１、適用于食品、醫藥、化工、化妝品行業中液體、醬料等物品的計量包裝。
The machine is suitable for the food, medicine, chemical industry, cosmetics industry of liquids , sauce of measurement packing.
２、可自動完成制袋、計量、下料、封合、分切、計數、且可根據客戶要求配置打印批號等功能。
All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
３、觸摸屏操作，PLC 控制，驅動步進電機控制袋長，性能穩定、調整方便、檢測準確。智能式溫控儀，PID調節，保證將溫度的誤差范圍控制在1℃以內。
The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
４、包裝材料：聚丙烯/聚乙烯，鋁箔/聚乙烯，滌綸/鍍鋁/聚乙烯，尼龍/增強型聚乙烯，紙/聚乙烯等。
Packing material：BOPP/Polyethylene, Aluminium/Polyethylene, Paper/Polyethylene,
Polyester/Aluminizer/Polyethylene, Nylon/CPP and so on.

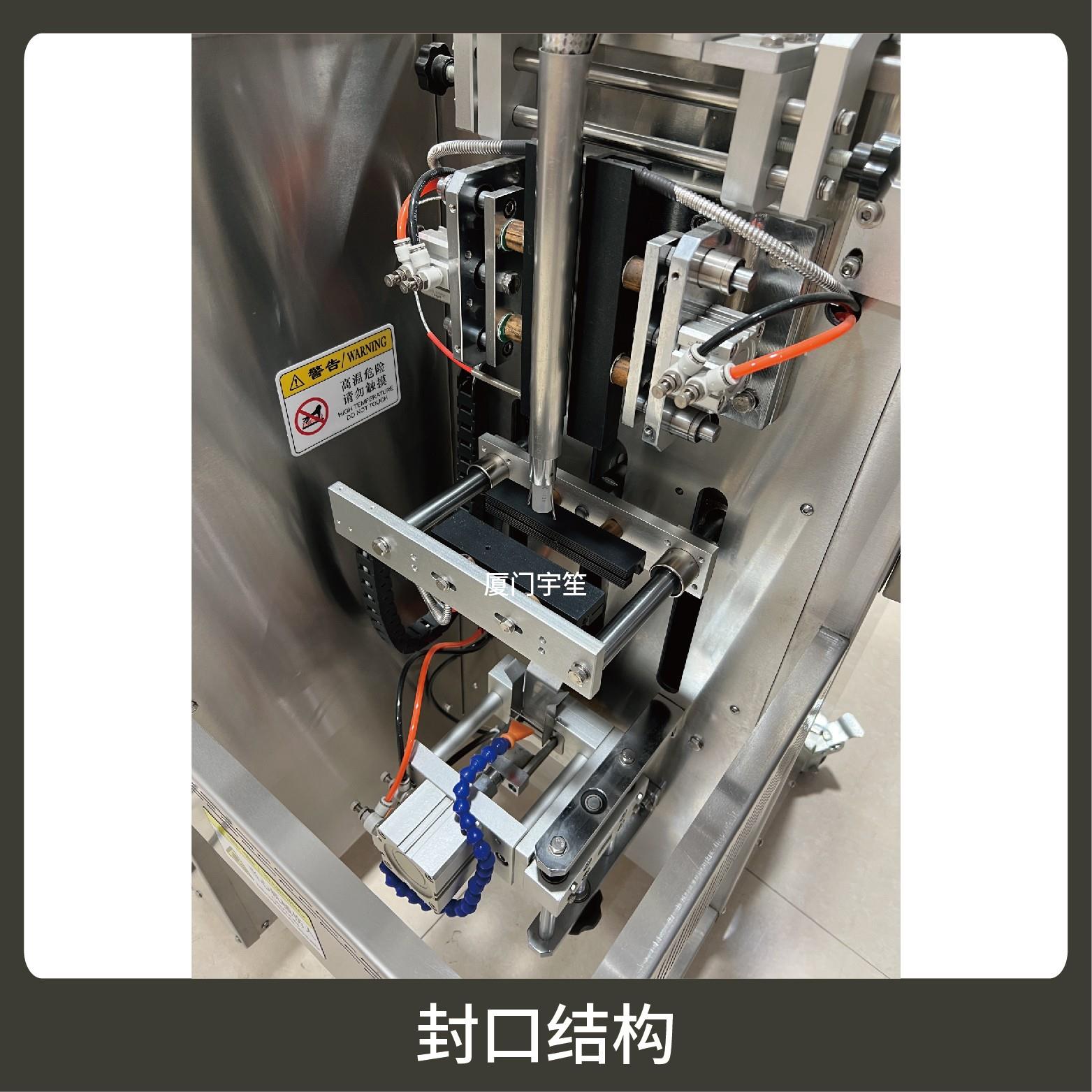

封口方式 Sealing Type
三邊封口 背封封口
Three sides Sealing / Back sealing
技術參數
Technical Parameters
計量范圍：1 - 20 g
Measuring Scope
制袋尺寸：長( L ) : 30 - 180 mm
Bag Size 寬( W ) : 20 - 75 mm
包裝速度：30 - 70 bags/min
Packing Speed
外型尺寸：780 * 1210 * 1530 mm
Dimension ( L * W * H )
整機重量：245 kg
Weight
總 功 率：220V / 50Hz / 1.6kw
Total Power
