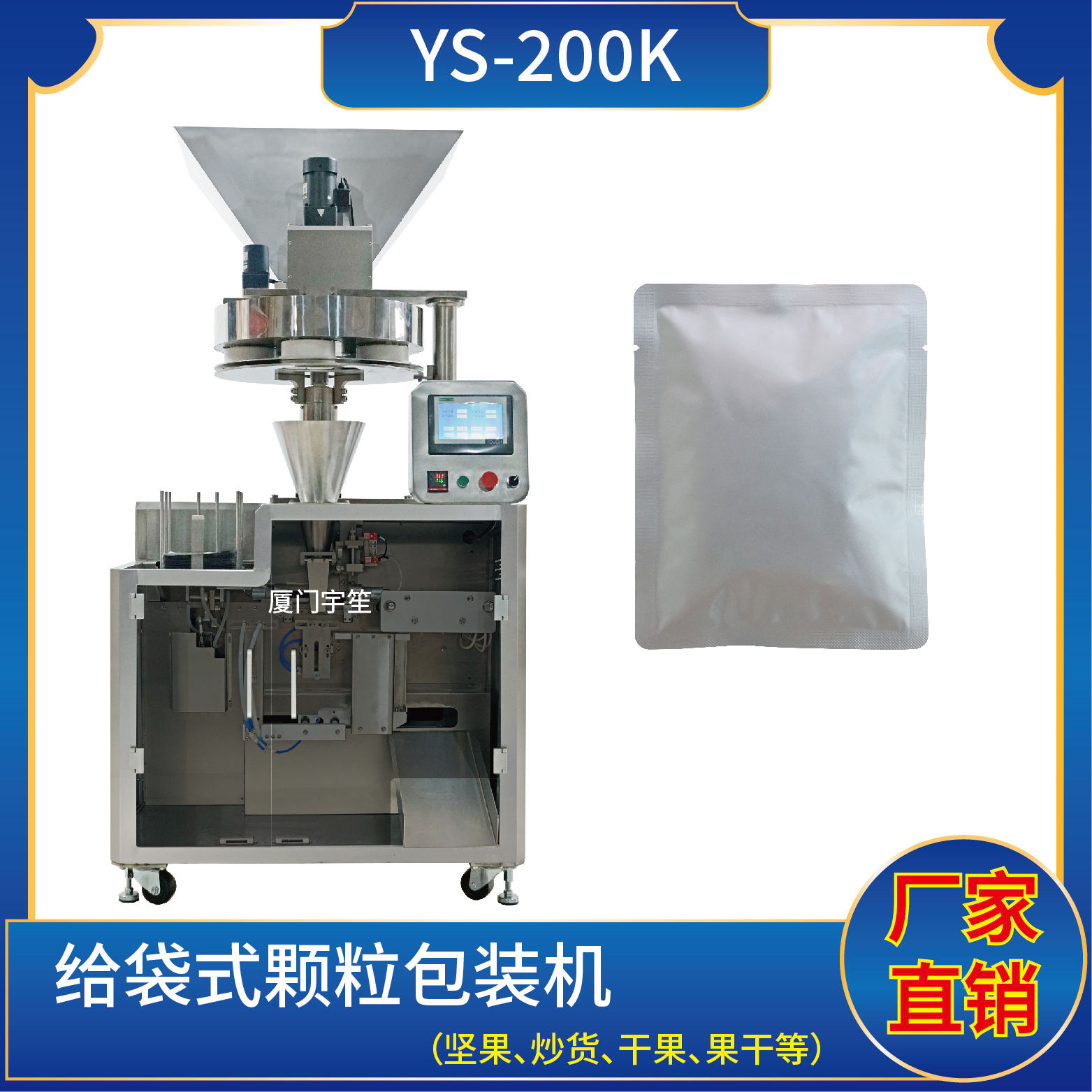

YS-SP200 全電動給袋式顆粒包裝機
YS-SP200 Bag type particle packing machine(All electric)
YS-SP200 給袋式顆粒包裝機(全電動)
特 點 Characteristic
1、適用于食品行業顆粒、粉劑、液體、醬料等物品的計量包裝。
It is suitable for the measurement and packaging of granules, powders, liquids, sauces and other items in the food industry.

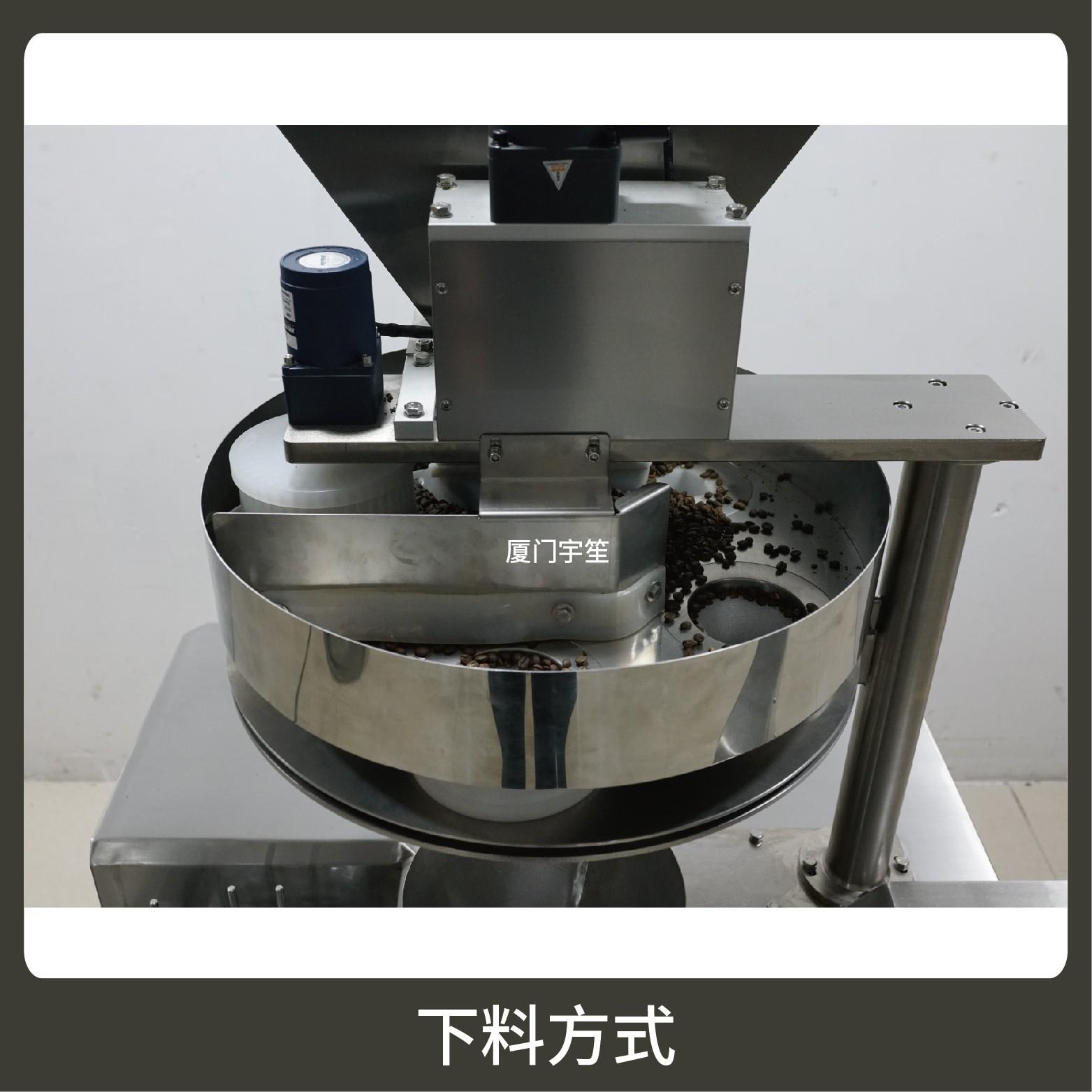

2、包裝流程全自動,無需人工操作??筛鶕?jù)充填物料的性質選配不同的下料結構(詳見第6頁,選配下料結構)。
The packaging process is fully automatic without manual operation. Different blanking structures can be selected according to the nature of the filling material.(See page 6 for details to select the blanking structure)
3、采用觸摸屏操作,PLC控制,封口溫度自動補償,控溫精準,封口美觀大方。
It adopts touch screen operation, PLC control, automatic compensation of sealing temperature, precise temperature control, and beautiful sealing.
4、包裝材料:PE復合膜,如:純鋁,鍍鋁等預制袋。
Packing material: PE composite film, such as: pure aluminum, aluminum plating and other prefabricated bags.

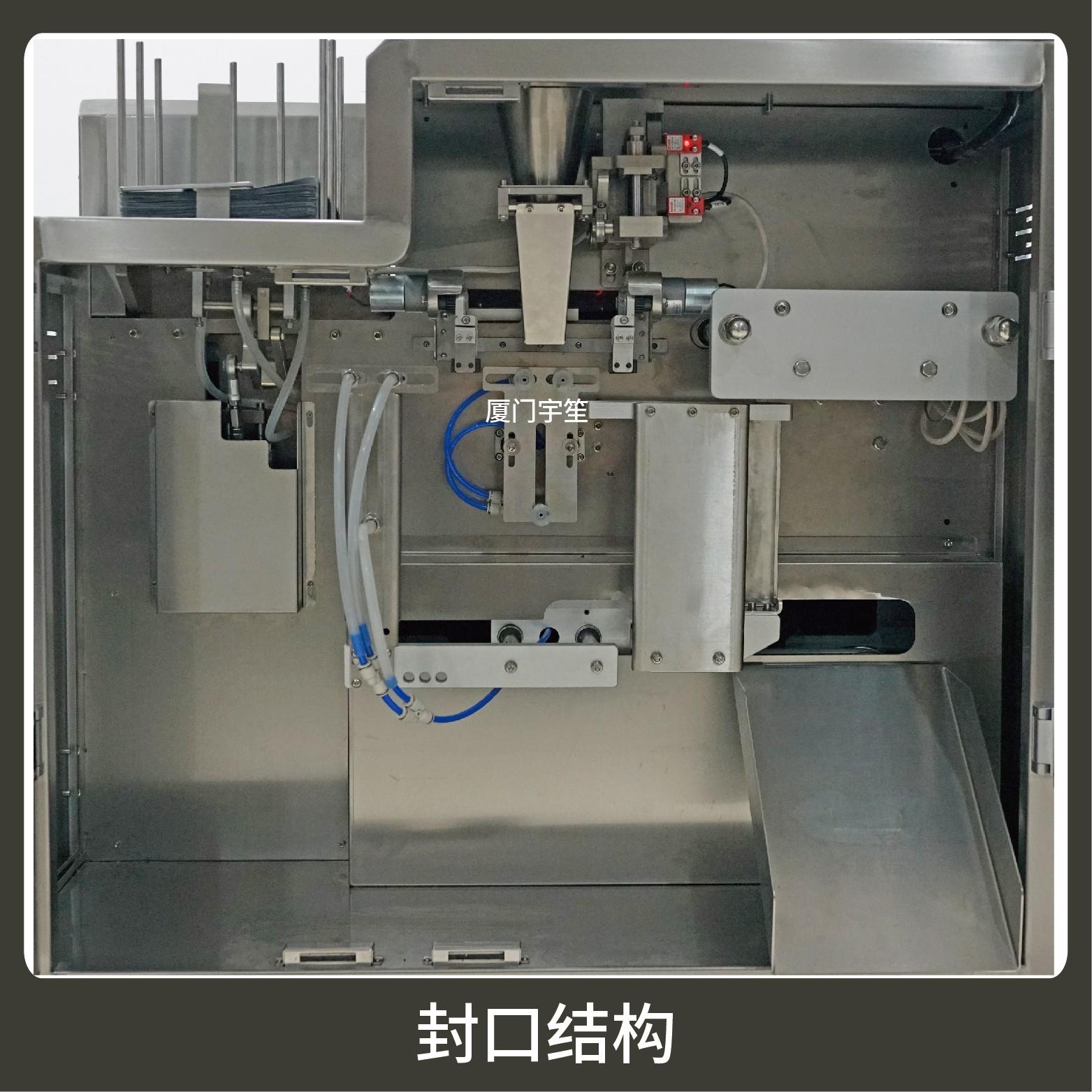

封口方式 Sealing Type
預制袋Prefab bag
技術參數Technical Parameters
計量范圍:200-1000g
Measuring Scope
預制袋(最大):長 ( L ) :280mm
Preformed bag(Max) 寬 ( W ) :200mm
包裝速度:15 - 25bags / min
Packing Speed
外型尺寸:1091 * 926 * 1343 mm
Dimension ( L * W * H )
整機重量:365 kg
Weight
總 功 率:AC220V / 50 - 60Hz / 2.2kw
Total Power
包裝流程全自動,無需人工操作??筛鶕?jù)充填物料的性質選配不同的下料結構(詳見第6頁,選配下料結構)。
The packaging process is fully automatic without manual operation. Different blanking structures can be selected according to the nature of the filling material.(See page 6 for details to select the blanking structure)
采用觸摸屏操作,PLC控制,封口溫度自動補償,控溫精準,封口美觀大方。
計量范圍:200-1000g
Measuring Scope
預制袋(最大):長 ( L ) :280mm
Preformed bag(Max) 寬 ( W ) :200mm
包裝速度:15 - 25bags / min
Packing Speed
外型尺寸:1091 * 926 * 1343 mm
Dimension ( L * W * H )
整機重量:365 kg
Weight
總 功 率:AC220V / 50 - 60Hz / 2.2kw
Total Power
適用于食品行業顆粒、粉劑、液體、醬料等物品的計量包裝。
It is suitable for the measurement and packaging of granules, powders, liquids, sauces and other items in the food industry.
